FRAF-100

Veterinary • Other

Product Overview: FURIX FRAF-100 is an advanced veterinary radiofrequency tumor ablation system designed for precise and minimally invasive animal tumor treatment.
Core Technology: World-first bivariate feedback control algorithm with real-time impedance and temperature monitoring.
Ablation Precision: Precisely controls ablation boundaries to prevent excessive tissue damage and protect nearby organs.
Operation Modes: Supports intelligent automatic ablation mode and manual ablation mode for flexible clinical needs.
Treatment Efficiency: Intelligent mode completes ablation within 10 minutes, enabling faster recovery and discharge.

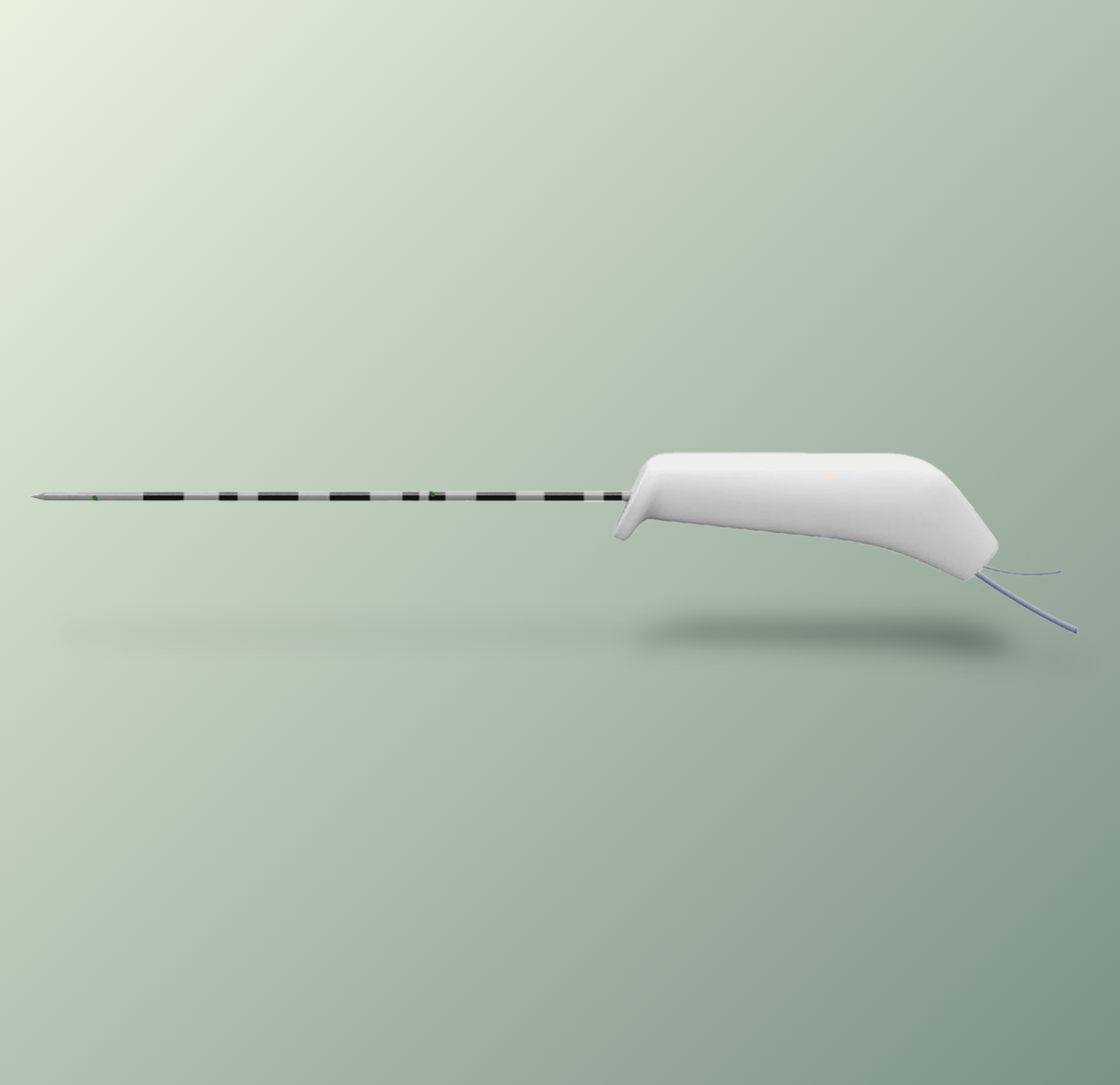

Safety Features: Automatic needle recognition, real-time parameter updates, and auto-stop after ablation completion.
Ease of Use: Large touch screen interface with simple one-press operation.
Clinical Application: Suitable for treating various animal tumors in veterinary hospitals and clinics.
Invasiveness: Ultra-minimally invasive, precise, and nearly painless compared to traditional surgery.

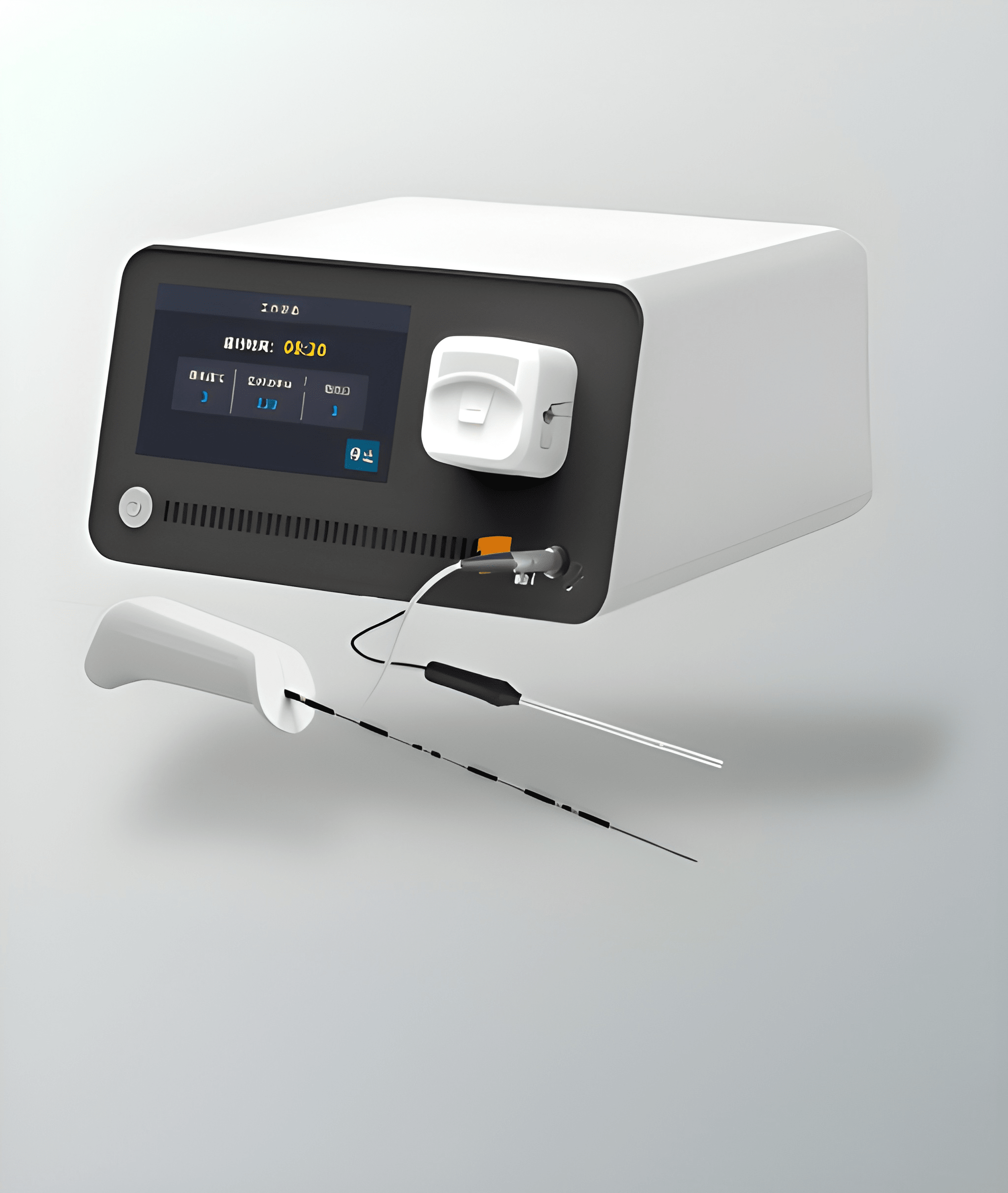

The FURIX FRAF-100 Veterinary Radiofrequency Tumor Ablation System is a high-performance medical device specially designed for safe, efficient, and precise tumor treatment in animals.
It offers a modern alternative to traditional tumor surgery by reducing trauma, pain, recovery time, and postoperative complications.

Radiofrequency current flows through animal tissue, generating a localized temperature field.
Rapid electromagnetic changes cause water molecules within tumor cells to vibrate and generate heat.
This leads to evaporation, dehydration, coagulation necrosis, and eventual destruction of tumor tissue.
Healthy surrounding tissue is protected through controlled boundary temperature monitoring.

Bi-variate Feedback Technology:
- Real-time monitoring of tissue impedance and boundary temperature.
- Dynamically adjusts ablation parameters to ensure precise tumor destruction.
Intelligent Control Algorithm:
- Automatically judges tissue status and controls power and ablation time.
- Eliminates the need for manual parameter settings during intelligent mode.

Precise Ablation Control: Prevents over-ablation and protects nearby healthy organs.
Fast & Efficient: Ablation completed within 10 minutes in intelligent mode.
Dual Operating Modes: Intelligent mode for automation, manual mode for customized procedures.
Safe & Reliable: Neutral electrode recognition prevents overheating and medical accidents.
User-Friendly Design: Large touch screen, visual parameter display, and simple operation.
Economical: One-time generator investment with reusable consumables.

Parameter	Details
Product Model	FRAF-100 VET
Equipment Type	Veterinary Radiofrequency Tumor Ablation System
Main Power Input	220V, 50Hz, 300VA
RF Output	25V (Peak), 450kHz, 100VA (Peak)
Ablation Range	Single needle length ≤ 4cm
Operating Temperature	-10°C to 30°C
Operating Humidity	30%–70%, non-condensing
Atmospheric Pressure	70–106 kPa
Protection Class	Class I Equipment
Liquid Protection	IPX1
Weight	9 kg
Dimensions	320 × 360 × 170 mm
Storage Temperature	-20°C to +55°C
Storage Humidity	10%–93%, non-condensing
