The Furix Dental Unit FD-610C PRO is an advanced veterinary dental system that integrates high-quality diagnostic imaging, treatment tools, and digital management software, ensuring precise and compassionate care for animal dental health. It builds upon the standard FD-610C model by incorporating a powerful all-in-one computer and a digital oral endoscopic system for enhanced visualization and record-keeping.

Key Features and Functionality-

• Adjustable LED Lighting System: Provides linear adjustable color temperature from 3000K to 6000K, allowing customization for optimal visibility during procedures. Illuminance ranges from 8000 to 30000lux, delivering soft, eye-friendly light without causing discomfort to veterinarians or animals. Features an infrared sensor switch for power-saving and convenient hands-free operation, arbitrary angle adjustment for flexibility, and an anti-curing mode where blue light constitutes only about 8% to minimize risks during treatments.

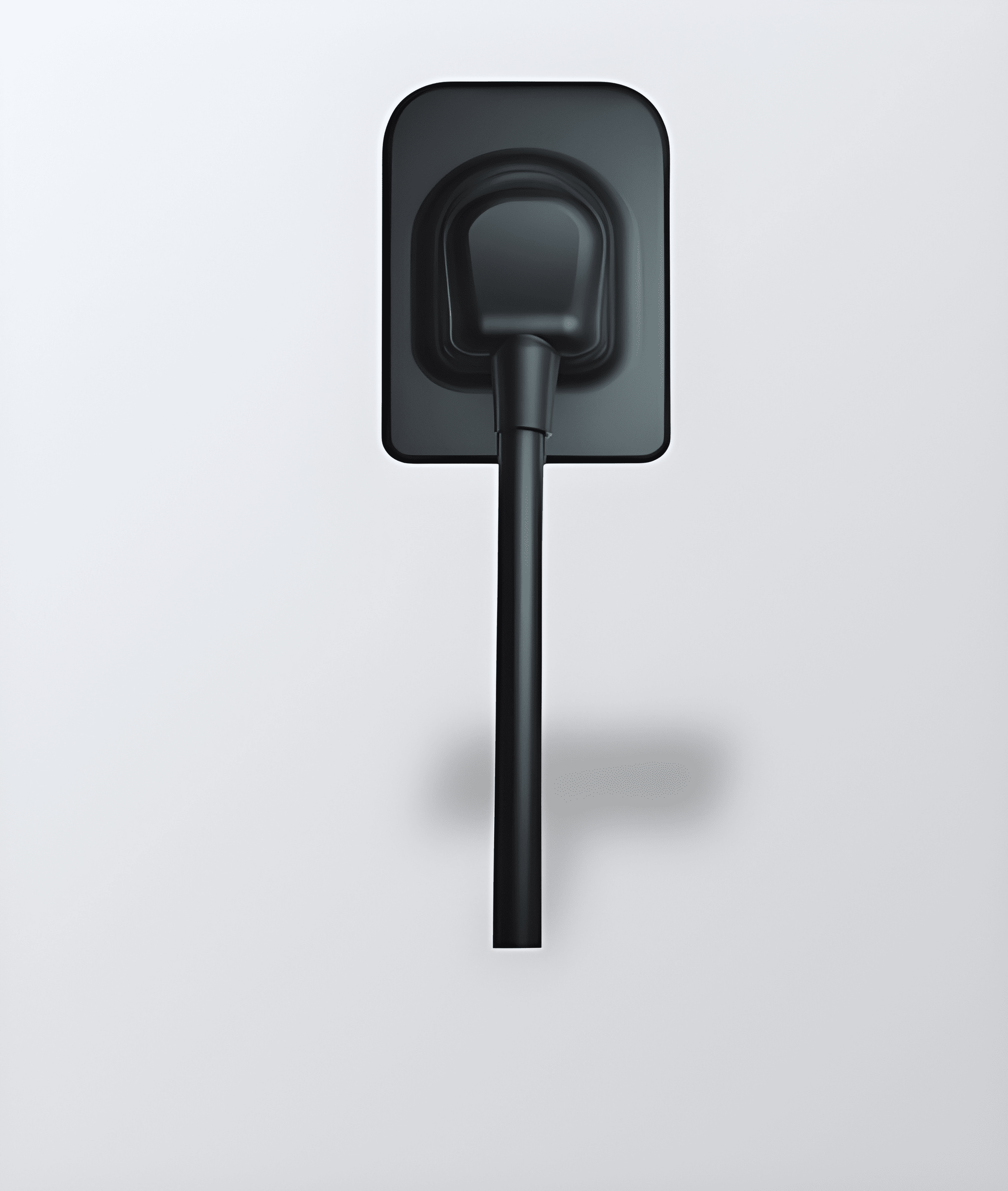

• High-Resolution Imaging: Equipped with an APS CMOS sensor that produces images with a higher signal-to-noise ratio and superior resolution, aiding veterinarians in accurate diagnosis of dental conditions in pets.
• Digital Oral Endoscopic System: Includes a standard high-definition SUB3.0K oral observation instrument with built-in dental observation equipment and specialized medical record software. Key operations include single-click photo capture and long-click video recording, enabling real-time documentation.
• Handpieces and Tools: Comes with a comprehensive set for dental procedures, including a 3-way syringe for air/water/spray delivery, high-speed handpiece for efficient cutting and polishing, low-speed handpiece for precise low-RPM tasks, ultrasonic scaler for plaque and tartar removal, suction handpiece for debris evacuation, and LED curing light for composite restorations.
• Air and Power System: Oil-free air compressor with 10L tank capacity, delivering 70L/min air flow at 0.8Mpa ±0.05Mpa pressure, ensuring reliable performance with low noise levels (40-55dB) for a calm clinic environment.
• Software Capabilities: The integrated Windows 10-based software supports multilingual (Chinese/English) interfaces and includes modules for systematic patient file management, keyword-based queries, image capture with zoom/rotate/full-screen options, real-time image contrast (up to four pictures for comparison), annotation for explanatory analysis, report editing with patient info/exam results/suggestions, and direct printing or transfer via QR code.

Technical Specifications:

Product Equipment Included:

Standard Configuration (Handpieces):

• Suction Handpiece: 1 PC
• 3-Way Syringe Handpiece: 1 PC
• LED Curing Light: 1 PC
• High Speed Handpiece: 1 PC
• Low Speed Handpiece: 1 PC
• Ultrasonic Scaler: 1 PC

Uses and Working Principles-

• Diagnostic Use: The endoscopic system allows veterinarians to capture high-quality photos and videos of the oral cavity, facilitating detailed examination of teeth, gums, and potential issues like fractures or infections. Images can be contrasted in real-time for before-and-after comparisons, saved automatically, and annotated for patient consultations.
• Treatment Application: Handpieces enable a range of procedures, from scaling and polishing to curing restorations. The adjustable lighting ensures clear visibility, while the air system provides consistent pressure for efficient tool operation.
• Patient Management Workflow: Software systematizes records—add patient details, query via keywords, edit images, generate reports with exam results and suggestions, and print or share digitally. This streamlines clinic operations, improving efficiency and accuracy in veterinary dentistry.
• Requirements for Operation: Requires a stable AC220V/50Hz power supply; compatible with standard veterinary setups. No additional internet needed beyond built-in WiFi for local transfers. Ensure proper maintenance of air compressor and handpieces for longevity.
• Benefits for Veterinary Practice: Renowned for precision in X-ray-like imaging (though focused on endoscopic visuals), this unit elevates pet dental care by combining innovation, user-friendly controls, and compassionate design, reducing procedure times and enhancing diagnostic confidence.
